Gantry Eagle 2000
The largest Gantry Eagle machine available for challenges that require nothing but the best.
Combining the latest in technological innovation with a unique, human – centric design, the Gantry Eagle series places top-quality results firmly within reach—without requiring any extra hassle. Plus, with on-board components designed to reduce wear and tear throughout its lifespan—requiring less maintenance and costly downtime—the Gantry Eagle series offers unmatched utility across any number of projects, materials, industries,and more.
Currently,the largest of the series, the Gantry Eagle 2000 combines unprecedented utility and versatility with the same innovative technologies that make this series a great choice for dependable, cost-efficient performance.
COST-EFFICIENT COMPONENTS
The Eagle PowerTec power supply reduces burn time and electrode wear without sacrificing accuracy.
- The Gantry Eagle 2000 uses the Eagle PowerTec power supply with the world’s first Adaptive Current-Shape generator. Each discharge pulse calculates and creates the ideal current shape to meet the exact discharge requirements at that moment.
- Eagle PowerTec, combined with Eagle Power Jump, reduces burn time by up to 50% while drastically reducing electrode wear—especially in graphite.
FAST, USER-FRIENDLY OPERATION
The Gantry Eagle 2000 features a dual 32-bit, PC-based CNC control that enables faster data processing and servo control. The machine’s unique construction provides thermal stability and rigidity and features a 4-sided drop tank design that allows work-area access from all sides.
UNCOMPROMISING QUALITY
The Eagle Gantry series balances a large workspace with high-precision machining, leading to results your business can comfortably depend on.
CAPABILITIES:
- PT60 PowerTec power supply provides full Adaptive Current-Pulse technology (optional PT110 provides 110 Peak AMPs)
COMPONENTS:
- Fully integrated machine base fluid system
- Fixed table traveling gantry construction
- Direct drive AC smart servo system
- Dual ball screw gantry drive
- 3D lateral servo system
- 4-sided drop tank design
- Easy-access dual filter system
- Dielectric fluid emission
ON-BOARD AUTOMATION:
- Automatic lubrication system
USER INTERFACE:
- Dual 32-bit, PC-based CNC control with 17” touchscreen operation
- Standard USB and Ethernet interface
SYSTEM INFORMATION:
- Windows XP-embedded operating system
- 40GB hard drive
- PowerTec Easy Burn on-board programming
ADDITIONAL BENEFITS:
- Full 2-year warranty with Triple Diamond Partnership Program
| Machine Travels: X x Y x Z in (mm) | 61.0 x 108.2 x 39.3 (1550 x 2750 x 1000) |
|---|---|
| Maximum Workpiece Size: W x D x H in (mm) | 79.5 x 126.7 x 49.2 (2020 x 3220 x 1250) |
| Max Dielectric Fluid Level: in (mm) | 51.2 (1300) |
| Power Supply (Option) / Peak Current | PT60 (PT110) / 80 (110) AMPs |
| Internal Worktank Dimensions W x D x H in (mm) | 79.5 x 126.7 x 53.1 (2020 x 3220 x 1350) |
| Worktank / Door Type | 4-Sided Drop Tank |
| Max. Workpiece Weight: lb (kg) | 66,138 (30,000) |
| Table Dimensions W x D: in (mm) | 73.6 x 121.2 (1870 x 3080) |
| Max. Electrode Weight: lb (kg) | 3306 (1500) |
| Table to C-Axis Chuck Distance Min ~ Max: in (mm) | 17.7 ~ 57.0 (1870 x 3080) 3R-MACRO Chuck |
| Minimum Command Unit / Resolution: in (mm) | .00001 / .000002 (.0001 / .00005) |
| Rapid Travel Speed: in/min. (mm/min.) | 315 (8000) |
| High-Speed Jump Maximum: in/min. (m/min.) | Standard Jump |
| Filters / Type | 4 pc. / Paper Cartridge |
| Filter Tank Capacity: gal (L) | 3434 (13,000) |

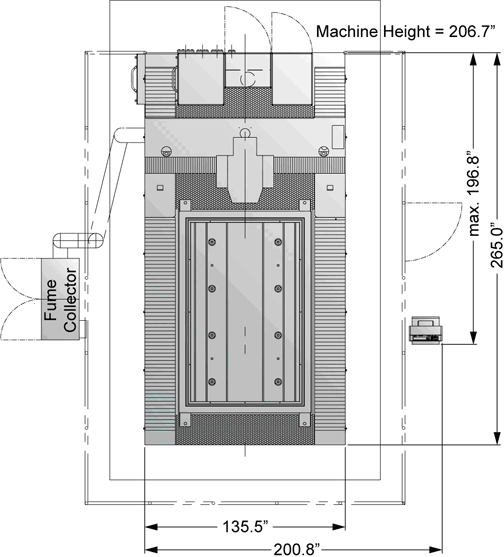

| Machine System Dimensions W x D: in (mm) | 135.8 x 267.7 (3450 x 6800) |
| Machine Installed Height: in (mm) | 206.7 (5250) |
| Machine System Weight: lb (kg) | 92,594 (42,000) |
| C-Axis Min. Indexing Angle / Drive Unit | .001º / .001º |
| C-Axis RPM Range | 1 ~ 20 Variable |
| Fluid Temp. Control | Chiller Optional |
| Optional Internal Spindle RPM Range | NA |
| Automatic Tool Changer Options | 20 Linear (Rotary Disk 30 / 50) |
| Power Requirements [KVA] | 400 VAC ±5% [30.0] without chiller |
| Compressed Air Requirements | 2.7 cu.ft./min @ 90-100 psi |
